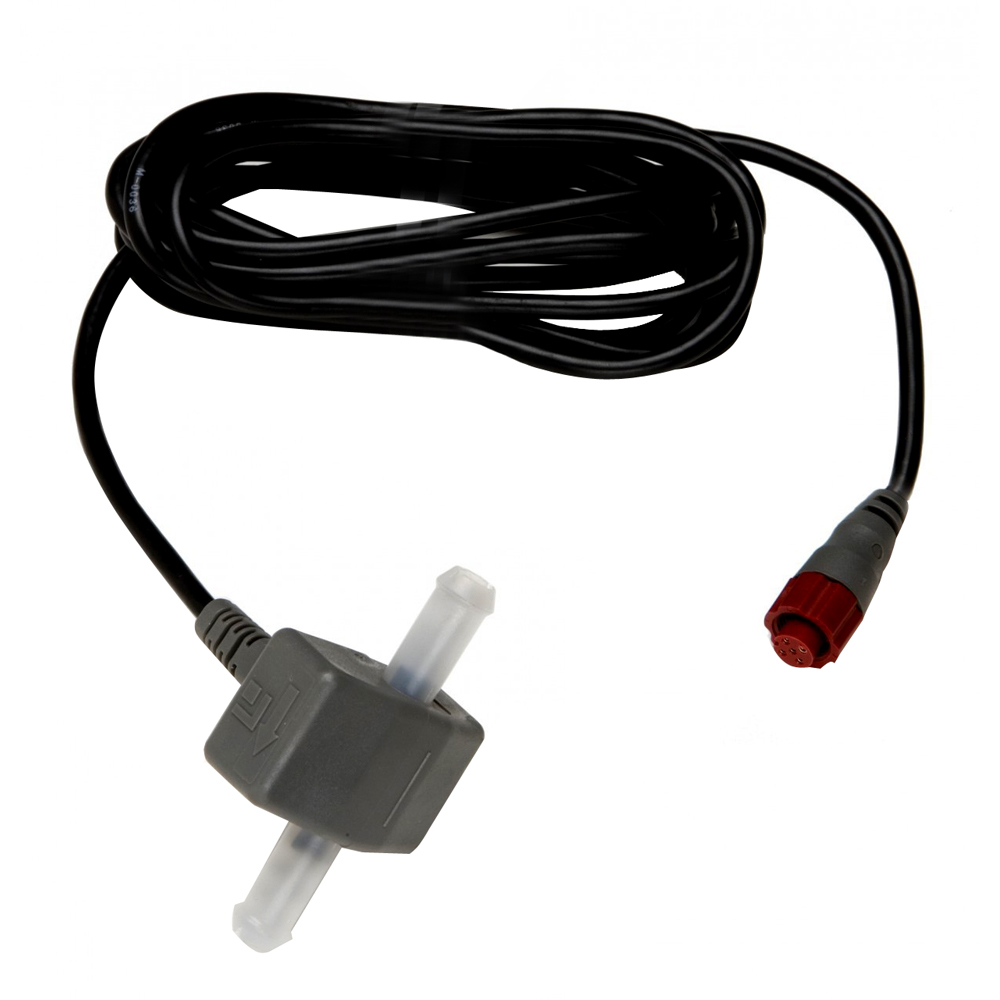

LOWRANCE FUEL FLOW SENSOR W/10' CABLE & T-CONNECTOR
$219.00
DISCOUNTS
This item has been added to your cart
LOWRANCE FUEL FLOW SENSOR W/10' CABLE & T-CONNECTOR added to cart.
Only one available in stock
View Cart or continue shopping.
Please wait while we finish adding this item to your cart.
1
of
6
Item details
Condition
New
Brand
Lowrance
MPN
000-11517-001
Model
54188
UPC
9420024129852
About this item
Fuel Flow Sensor with 10' cable & T-connector
54168
Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes
