GARMIN AIRMAR DST 810 SMART TRANSDUCER - 0° DEGREE Maximum Depth: 300 ft
$379.00
DISCOUNTS
This item has been added to your cart
GARMIN AIRMAR DST 810 SMART TRANSDUCER - 0° DEGREE Maximum Depth: 300 ft added to cart.
Only one available in stock
View Cart or continue shopping.
Please wait while we finish adding this item to your cart.
1
of
7
Item details
Condition
New
Brand
Garmin
Model
86206
MPN
010-11051-20
Sport/Activity
Fishing
Indoor/Outdoor
Outdoor
Type
SMART TRANSDUCER
Features
UPC
753759260989
About this item
GVO Marine Electronics:
We provide reliable, safe online shopping 24 hours a day, 7 days a week throughout the U.S. and the world. We are strongly committed to providing our customers with top quality merchandise and world class service.
Model 86206-GAR0101105120

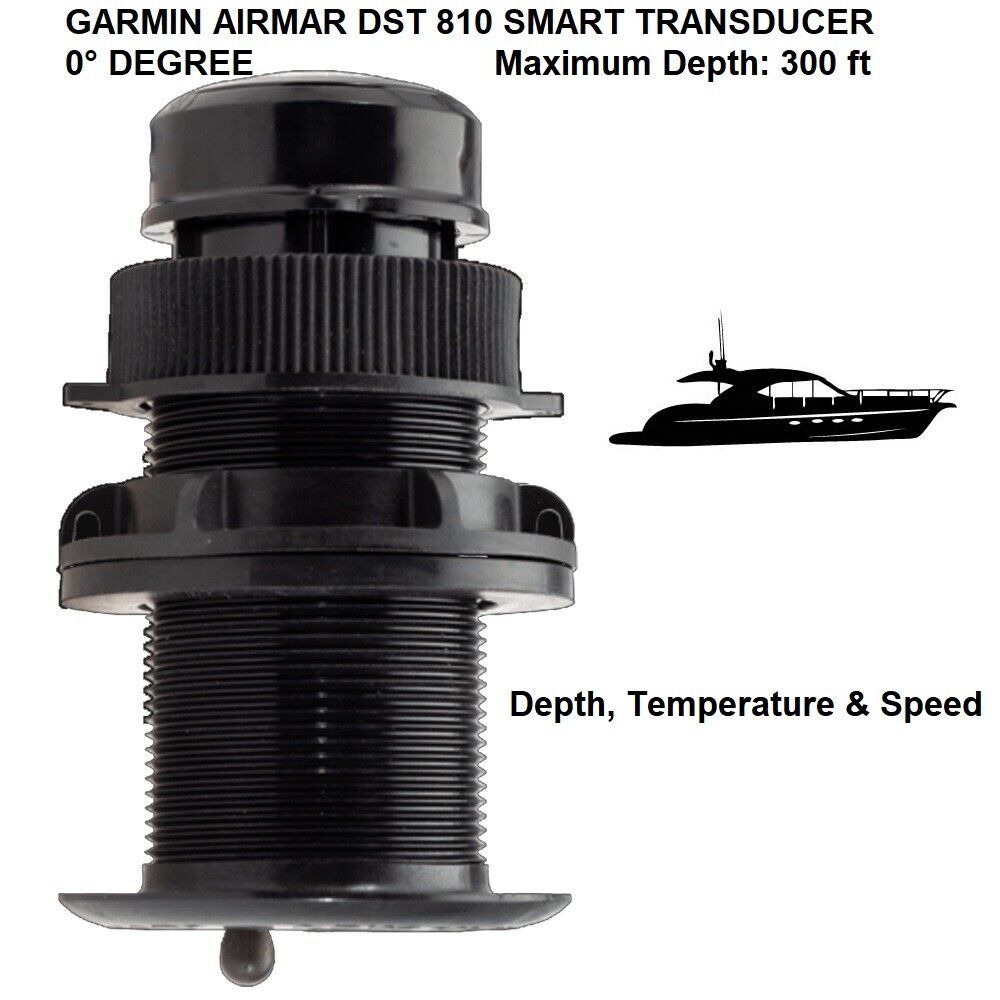

Airmar DST 810 Smart Transducer - 0° Degree
This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.
Wireless BLUETOOTH® connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
Specifications:
- Frequency: 235kHz
- Power: 100w
- Beamwidth: 10 x 44 degrees
- Maximum Depth: 300 ft.
- Depth/Speed/Temperature: Depth, Temperature and Speed
- Number of Pins: NMEA 2000
- Supported Deadrise/Transom Angles: 0 to 22 degrees
| Acoustic Window | Urethane |
| Hull Deadrise | Up to 22° |
| Data Update Rate | Depth: 1X/second |
| Attitude Accuracy | +/— 1° nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6') |
| Maximum Depth Range | Up to 100 m (330')—NMEA 2000® |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10') |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC—per NMEA 2000 |
| Supply Current | <200 mA—per NMEA 2000® |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20') DeviceNet—NMEA 2000® |
| Temperature Sensor Accuracy | ±0.5°C (±1.8°F) |
| Temperature Sensor Range | -10°C to 40°C (14°F to 104°F) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
